產(chǎn)品描述

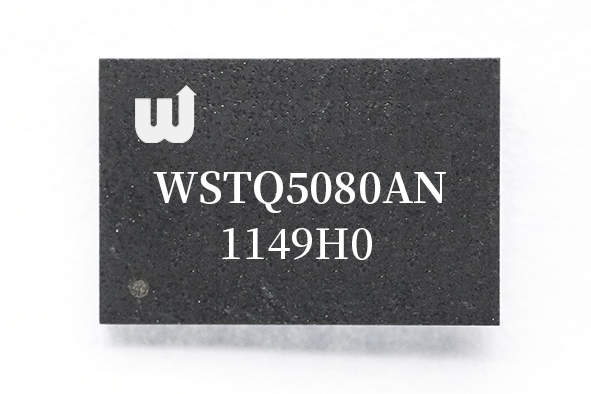

Smart High-Side Power switch Quad channel,80mΩ, DFN9x6-14L , AEC-Q100 qualified

主要特點(diǎn)

Features

• PRO-SILm ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

• Quad channel device

• Very low stand-by current

• 3.3 V and 5 V compatible logic inputs

• Optimized electromagnetic compatibility

• Very low electromagnetic susceptibility

Diagnostic Functions

• Proportional load current sense

• High current sense precision for wide range currents

• Off-state open load detection

• OUT short to vs detection

• Overload and short to ground latch-off

• Thermal shutdown latch-off

• Very low current sense leakage

Protection Functions

• Undervoltage shutdown

• Overvoltage clamp

• Load current limitation

• Self limiting of fast thermal transients

• Protection against loss of ground and loss of VS

• Thermal shutdown

規(guī)格書(shū)
